Vectors and a Hexagon

IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
This item is taken from IGCSE Mathematics (0580) Paper 22 of October/November 2013.


To deal with this item, let us summarize the details of the problem:
   (a) Syllabus area: Vectors
   (b) Specific topic: Vectors, Position Vectors, Addition/Subtraction of Vectors

   (c) Concept Needed:
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
Let us start with the relations of the sides of a regular hexagon.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
Before we answer (a), let us start with the relations of the vectors given in the figure.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
We cannot get the direct value of BE using the given vectors. Instead, we can find the value of OB first, then use the relation of the vectors BE = 2BO.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination

Considering vectors OC and CB, the resultant is vector OB. This uses the concept of triangle law of vector addition, since vector OC and CB are in a nose to tail position.
However, we are finding BO. Hence, we can reverse the directions and find the resultant BO in terms of a and c.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
We can find BE by using vector BO.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination

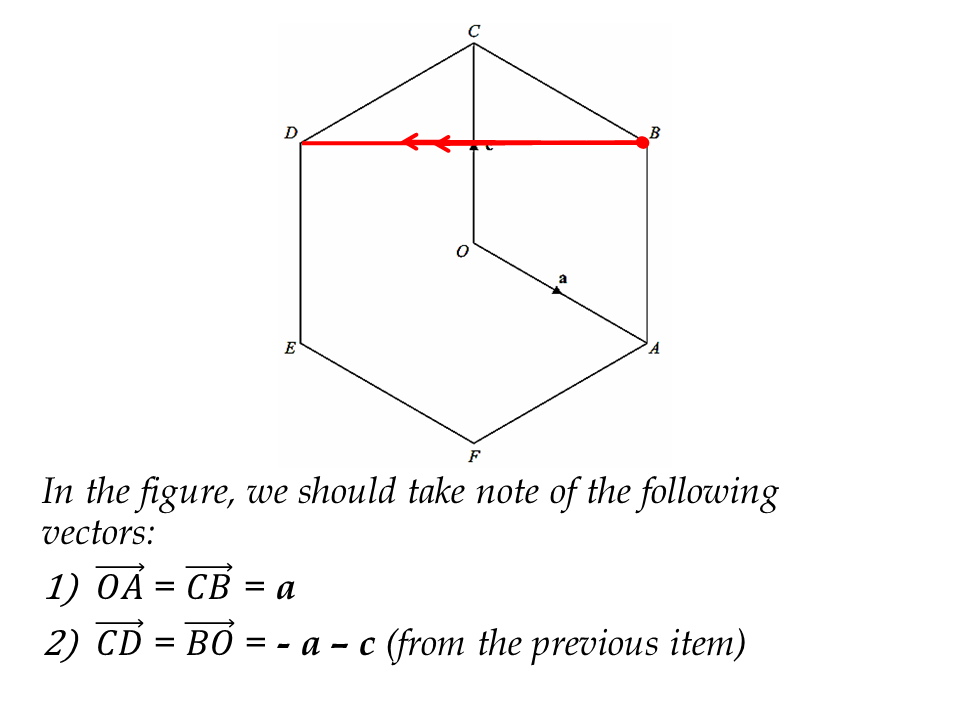

For (b), let us start with the relations of the vectors needed.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination

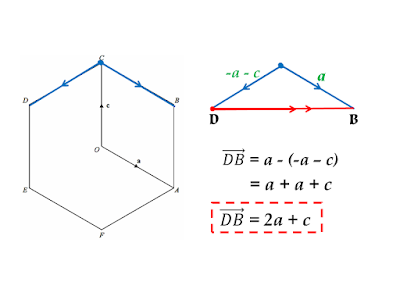

Using the triangle law of subtraction of vectors.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination

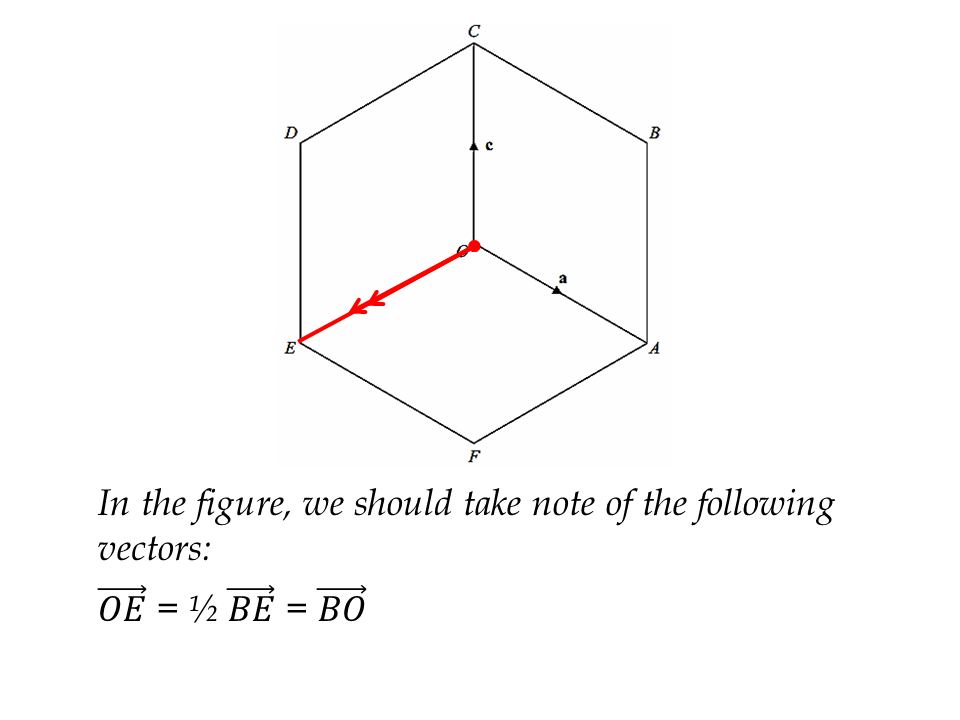

For (iii), we should take note that it is a position vector. It means that the vector starts with O then ends with E. Hence, we are finding vector OE.
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination

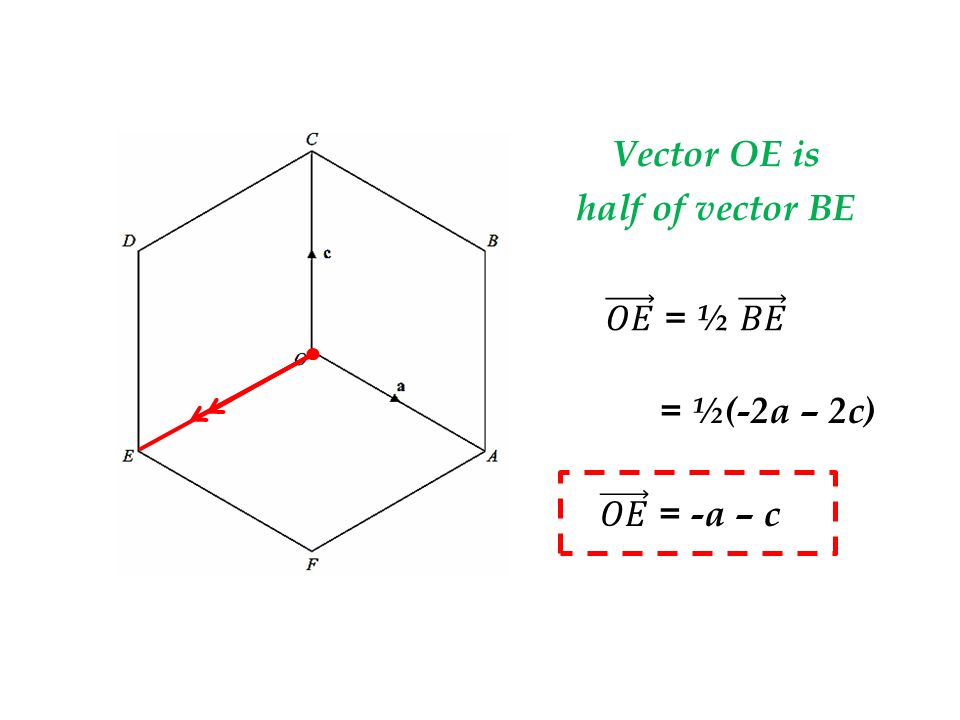

Using the relation of vector OE and vector BE,
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
Therefore,
IGCSE,mathematics,revisions,past papers,triangles,geometry,hexagon,regular polygons,addition of vectors,vector subtraction,examination
---------------------------------------------------------------------------------------------------------------
Your comments and suggestions are welcome here. Write them in the comment box below.

Thank you and God bless!
